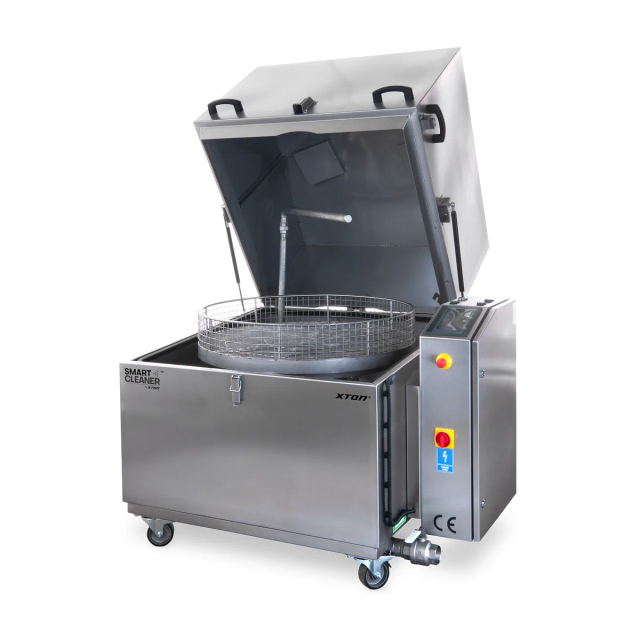

Smart Cleaner™ SC850
A compact version of the rotating-basket washer, for workshops with a lower volume of parts looking for an automatic cleaning cycle in a smaller footprint.
Automatic washing cycle with a rotating basket holding up to 300 kg, in a smaller footprint than the Smart Cleaner™ SC1000. The liquid is filtered and reused, reducing water and chemical consumption, while the dedicated oil separator keeps it clean for longer.
The lid opens pneumatically and the touch-screen panel runs automatic washing programmes with adjustable cycle length and spray pressure, so the machine adapts to different batches of parts without manual intervention.
Equipment
- liquid level and temperature sensors
- dual liquid filtration system
- top-loading rotating basket, up to 300 kg load
- heated tank with a capacity of up to 200 l
- adjustable swivel feet
- dedicated disc oil separator, keeping the tank liquid free of oil residue
- touch-screen control panel
- automatic washing programmes, cycle length 0–240 min
- programmable spray pressure, 3–4 bar
- XPOWER Active Cleaner BA starter kit (low-foam alkaline detergent with corrosion inhibitor)
- pneumatically opening lid
- heavy-duty operator gloves
Optional extras:
- thermal insulation for the liquid tank
Technical parameters
| Weight | 185 kg |
|---|---|
| External dimensions – chamber open | 135 × 160 × 194 cm |
| External dimensions – chamber closed | 135 × 108 × 141 cm |
| Chamber dimensions | 85 × 85 × 55 cm |
| Basket diameter | 85 cm |
| Working space above the basket | 50 cm |
| Maximum basket load | 300 kg |
| Cycle time programming | 0–240 min |
| Heated liquid tank | 200 l |
| Usable capacity (to oil separator level) | 200 l |
| Operating temperature | up to 80 °C |
| Supply voltage | 3 × 400 V |
| Frequency | 50 Hz |
| Power socket | 32 A |
| Maximum power | 9 kW |
| Spray pressure | 3–4 bar |
| Washing pump flow rate | up to 250 l/min |
| Filtration stages | 2 |
| Filtration grade | 50–150 µm |
| IP protection rating | IP54 |
| Safety features | temperature sensor, emergency stop, liquid level sensor, door-open sensor |
| Declaration of conformity | CE |
