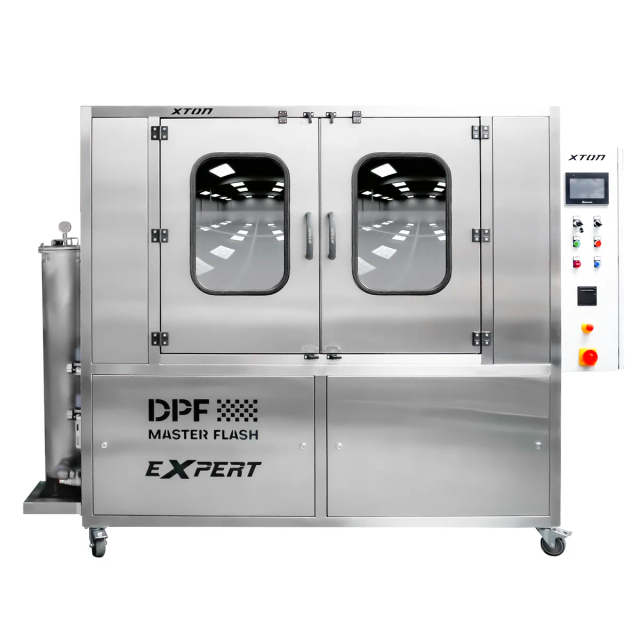

DPF Master Flash™ Expert
The most advanced machine in the DPF Master Flash™ range for regenerating DPF / FAP / GPF / SCR / EURO5 / EURO6 particulate filters and catalytic converters, designed to treat filters from cars, vans, trucks, buses, and agricultural and construction machinery.
The flagship of the DPF Master Flash™ range, combining top-quality components with a well-engineered design for high-volume, heavy-duty filter regeneration.
DPF Master Flash™ technology, based on the hydrodynamic method, restores filter efficiency by up to 99% and is safe for the DPF’s monolithic structure. Correctly selected parameters allow complete removal of PM10 and PM2.5 residue, soot, carbon deposits, cerium oxides and heavy metals, while preserving the filter’s factory properties.
Manufacturer's warranty: 12 months
Equipment
- automatic bidirectional regeneration programme (washing and drying)
- second liquid circuit with an additional pump
- automatic water and chemical top-up
- 7" colour touchscreen
- sensors for liquid level and temperature, air temperature, pressure, door opening, fault and phase sequence
- contamination measurement system (back-pressure test with parameter printout)
- AISI 316 stainless-steel chamber
- integrated filter drying system at 70–130 °C
- cooling for the drying system
- extended 4-stage filtration system
- built-in, customisable thermal parameter printer
- Ethernet controller for remote diagnostics
- machine-monitoring module via mobile app (Google Play and App Store)
- thermally insulated liquid tank with a capacity of up to 600 l
- 1060 m³/h side-channel blower
- two liquid pumps (washing and filtration)
- triple water-heating system
- frequency-inverter control
- 5 regeneration programmes with editable settings
- pressure hoses with 2.5″ camlock connections
- set of adapters for all filter types, including EURO5 and EURO6
Optional extras:
- passive drying chamber
- Quick-X quick filter-mounting system
Technical parameters
| Weight | 950 kg |
|---|---|
| External dimensions | 270 × 145 × 215 cm |
| Chamber dimensions | 200 × 105 × 107 cm |
| Heated liquid tank | 600 l |
| Tank thermal insulation | Yes |
| Automatic detergent dosing | Yes |
| Automatic water refill | Yes |
| Thermal parameter printer | Yes |
| Working pressure | 7–8 bar (102–116 psi) |
| Supply voltage | 3 × 400 V |
| Maximum power | 18 kW |
| Frequency | 50 Hz |
| Water connection (inlet) | 3/4" |
| Water connection (drain) | 6/4" |
| Air connection | DN7.2 pneumatic quick coupling (male) |
| Ambient temperature | 5–35 °C |
| Operating noise level | up to 70 dB |
| Liquid temperature | adjustable from 30 to 70 °C |
| Drying temperature | adjustable from 70 to 130 °C |
| Optimal operating temperature | 38 °C |
| Pressure hose diameter | 2 ½" |
| Filtration pump flow rate | up to 450 l/min |
| Filtration stages | 4 |
| Filtration grade | 5–100 µm |
| Airflow | up to 1,060 m³/h |
| Regeneration method | automatic, bidirectional |
| Contamination measurement system | mbar, kPa |
| Safety features | temperature sensor, pressure sensor, door-open sensor, emergency stop |
| Declaration of conformity | CE |
